KSB1149 Datasheet - Fairchild Semiconductor

KSB1149 PNP Silicon Darlington Transistor

KSB1149 KSB1149 Low Collector Saturation Voltage Built-in Damper Diode at E-C High DC Current Gain High Power Dissipation : PC=1.3W (Ta=25°C) 1 TO-126 2.Collector 3.Base 1. Emitter PNP Silicon Darlington Transistor Absolute Maximum Ratings TC=25°C unless otherwise noted Symbol VCBO VCEO VEBO IC ICP PC PC TJ TSTG Parameter Collector-Base Voltage Collector-Emitter Voltage Emitter-Base Voltage Collector Current (DC) Collector Current (Pulse) Collector Dissipation (Ta=2.

KSB1149 Datasheet (46.53 KB)

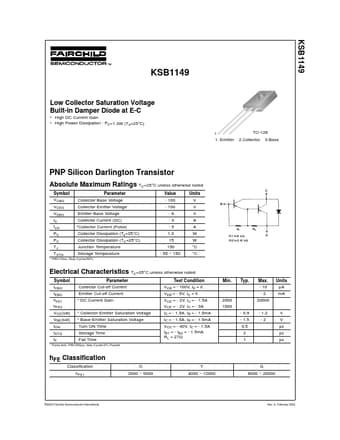

Preview of KSB1149 PDF

Datasheet Details

Part number:

KSB1149

Manufacturer:

Fairchild Semiconductor

File Size:

46.53 KB

Description:

Pnp silicon darlington transistor.
