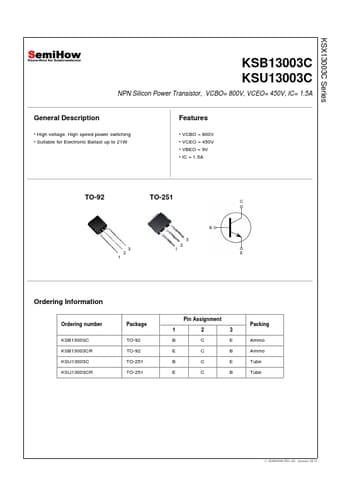

KSB13003C Datasheet, Transistor, SemiHow

KSB13003C Features

• Transistor
• VCBO = 800V
• VCEO = 450V
• VBEO = 9V
• IC = 1.5A TO-92 TO-251 3 2 1 3 2 1 Ordering Information Ordering number KSB13003C KSB13003CR KSU13003C KSU

PDF File Details

Part number:

KSB13003C

Manufacturer:

SemiHow

File Size:

217.25kb

Download:

📄 Datasheet

Description:

Npn silicon power transistor.

High voltage, High speed power switching

Suitable for Electronic Ballast up to 21W Features

VCBO = 800
