NDS8425 Datasheet, Mosfet, Fairchild

NDS8425 Features

  • Mosfet
  • 7.4 A, 20 V. RDS(ON) = 0.022 Ω @ VGS = 4.5 V RDS(ON) = 0.028 Ω @ VGS = 2.7 V
  • Fast switching speed
  • Low gate charge (11nC typical)
  • High perfor

PDF File Details

Part number:

NDS8425

Manufacturer:

Fairchild

File Size:

125.87kb

Download:

📄 Datasheet

Description:

Single n-channel mosfet. This N-Channel 2.5V specified MOSFET is produced using Fairchild Semiconductor’s advanced Power Trench process that has been especial

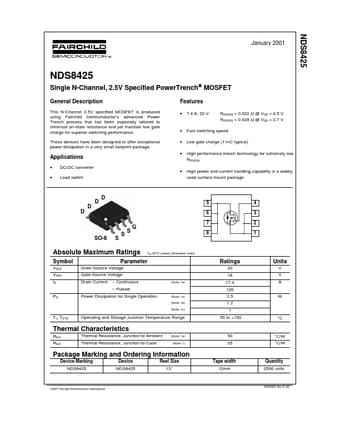

Datasheet Preview: NDS8425 📥 Download PDF (125.87kb)
Page 2 of NDS8425 Page 3 of NDS8425

NDS8425 Application

  • Applications
  • DC/DC converter
  • Load switch Features
  • 7.4 A, 20 V. RDS(ON) = 0.022 Ω @ VGS = 4.5 V RDS(ON) = 0.028 Ω @
