NDS8426A

Single N-channel MOSFET

NDS8426A Features

* 10.5 A, 20 V. RDS(ON) = 0.0135 Ω @ VGS= 4.5 V. RDS(ON) = 0.016 Ω @ VGS= 2.7 V. High density cell design for extremely low RDS(ON). High power and current handling capability in a widely used surface mount package. _____________________________________________________________________________________

NDS8426A General Description

SO-8 N-Channel enhancement mode power field effect transistors are produced using Fairchild's proprietary, high cell density, DMOS technology. This very high density process is especially tailored to minimize on-state resistance and provide superior switching performance. These devices are particula.

NDS8426A Datasheet (330.01 KB)

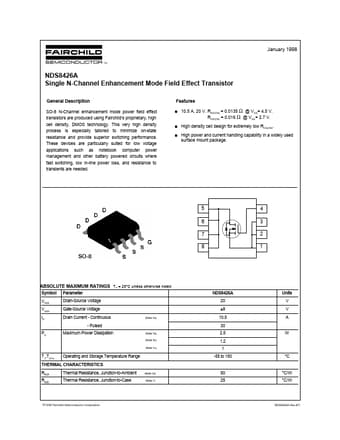

Preview of NDS8426A PDF

Datasheet Details

Part number:

NDS8426A

Manufacturer:

Fairchild

File Size:

330.01 KB

Description:

Single n-channel mosfet.
