NDS8433

single P-Channel MOSFET

NDS8433 Features

* -5.2A, -20V. RDS(ON) = 0.055Ω @ VGS = -4.5V RDS(ON) = 0.075Ω @ VGS = -2.7V. High density cell design for extremely low RDS(ON). High power and current handling capability in a widely used surface mount package. ________________________________________________________________________________________

NDS8433 General Description

These P-Channel enhancement mode power field effect transistors are produced using Fairchild's proprietary, high cell density, DMOS technology. This very high density process is especially tailored to minimize on-state resistance and provide superior switching performance. These devices are particul.

NDS8433 Datasheet (332.06 KB)

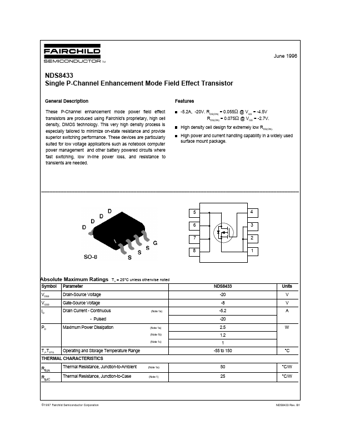

Preview of NDS8433 PDF

Datasheet Details

Part number:

NDS8433

Manufacturer:

Fairchild

File Size:

332.06 KB

Description:

Single p-channel mosfet.
