NDS8435

Single P-Channel MOSFET

NDS8435 Features

* -7A, -30V. RDS(ON) = 0.028Ω @ VGS = -10V RDS(ON) = 0.045Ω @ VGS = -4.5V. High density cell design for extremely low RDS(ON). High power and current handling capability in a widely used surface mount package. ___________________________________________________________________________________________

NDS8435 General Description

SO-8 P-Channel enhancement mode power field effect transistors are produced using Fairchild's proprietary, high cell density, DMOS technology. This very high density process is especially tailored to minimize on-state resistance and provide superior switching performance. These devices are particula.

NDS8435 Datasheet (330.91 KB)

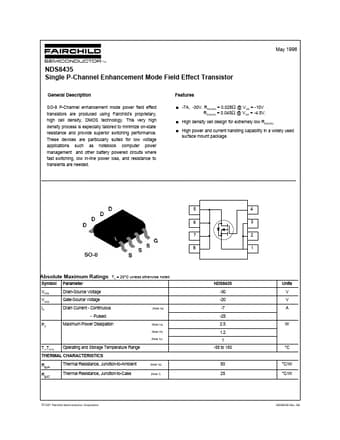

Preview of NDS8435 PDF

Datasheet Details

Part number:

NDS8435

Manufacturer:

Fairchild

File Size:

330.91 KB

Description:

Single p-channel mosfet.
