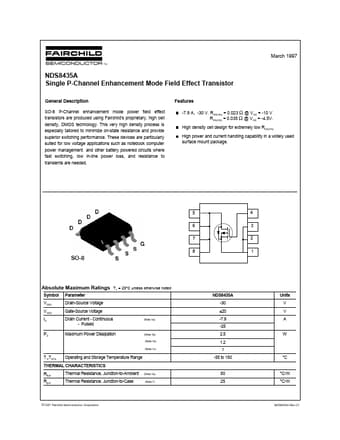

NDS8435A - Single P-Channel MOSFET

Fairchild

Datasheet Details

SO-8 P-Channel enhancement mode power field effect transistors are produced using Fairchild's proprietary, high cell density, DMOS technology.

-7.9 A, -30 V. RDS(ON) = 0.023 Ω @ VGS = -10 V RDS(ON) = 0.035 Ω @ VGS = -4.5V. High density cell design for extremely low RDS(ON). High power and current handling capability in a widely used surface mount package. ___________________________________________________________________________________________ 5 6 7 4 3 2 1 8 Absolute Maximum Ratings Symbol VDSS VGSS ID PD Parameter Drain-Source Voltage Gate-Source Voltage Drain Current - Continuous - Pulsed T A = 25°C unless otherwise noted.
