MB82B81 Datasheet - Fujitsu

MB82B81 - 256K-BIT HIGH-SPEED BiCMOS SRAM

Symbol Ao to A17 0,.

DOUT as Pin Name Address input.

Dete input.

DetaOulput.

Chip Select.

Symbol WE Vee GND MB82B81-15 MB82B81-20 Pin Name Write Enable.

Po_ Supply (+5V ±10%).

Ground.

TRUTH TABLE Ci WE Mode H X Not Selected L L Write L H Read Legend: H = High level, L = Low lewl, X

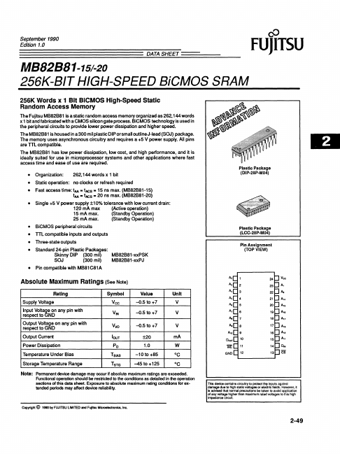

September 1990 Edition 1.0 DATA SHEET 00 FUJITSU M882881-151-20 256K-BIT HIGH-SPEED BiGMOS SRAM 256K Words x 1 Bit BICMOS High-Speed Static Random Access Memory The Fujitsu MB82B81 is a static random access memory organized as 262.144 words x 1 bit and fabricated with a CMOS silicon gate process.

BiCMOS technology is used in the peripheral circuits to provide lower power dissipation and higher speed.

The MB82B81 is housed in a300 mil plastic DIPorsmall outlineJ-lead (SOJ) package.

The memor
