GS66516T

Top cooled 650V enhancement mode GaN transistor

GS66516T Features

* 650 V enhancement mode power transistor

* Top-side cooled configuration

* RDS(on) = 25 mΩ

* IDS(max) = 60 A

* Ultra-low FOM die

* Low inductance GaNPX® package

* Simple drive requirements (0 V to 6 V)

* Transient tolerant gate drive (

GS66516T General Description

The GS66516T is an enhancement mode GaN-onsilicon power transistor. The properties of GaN allow for high current, high voltage breakdown and high switching frequency. GaN Systems innovates with industry leading advancements such as patented Island Technology® and GaNPX® packaging. Island Technology®.

GS66516T Datasheet (0.99 MB)

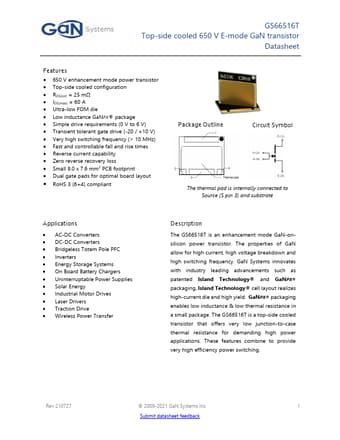

Preview of GS66516T PDF

Datasheet Details

Part number:

GS66516T

Manufacturer:

GaN Systems

File Size:

0.99 MB

Description:

Top cooled 650v enhancement mode gan transistor.
