HM1N70PR - Silicon N-Channel Power MOSFET

Product Overview

H&M Semiconductor

Datasheet Details

Part number	HM1N70PR
Manufacturer	H&M Semiconductor
File Size	854.49 KB
Description	Silicon N-Channel Power MOSFET
Datasheet	HM1N70PR Datasheet

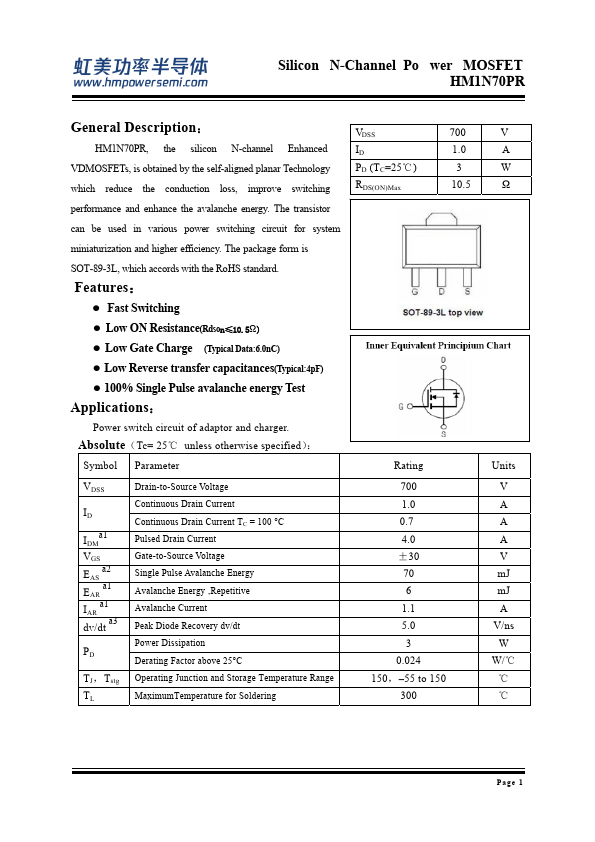

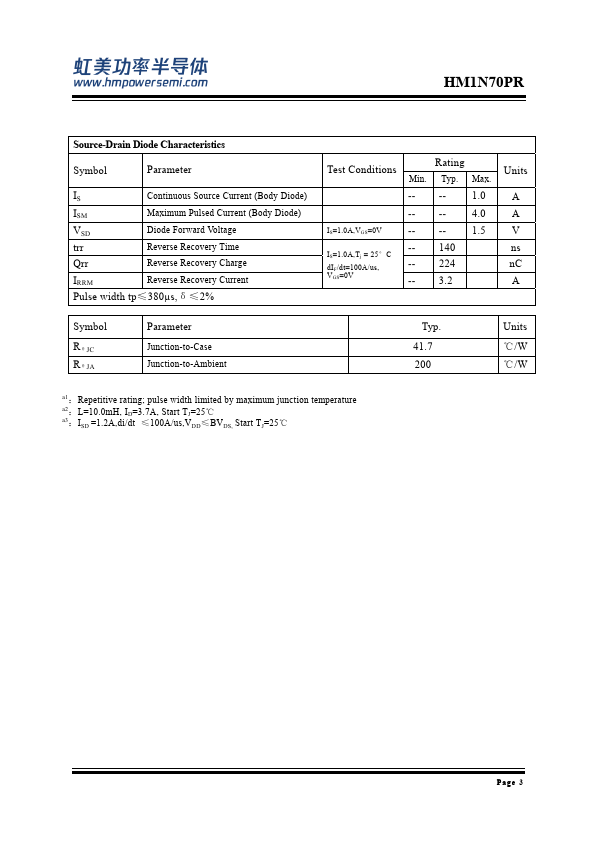

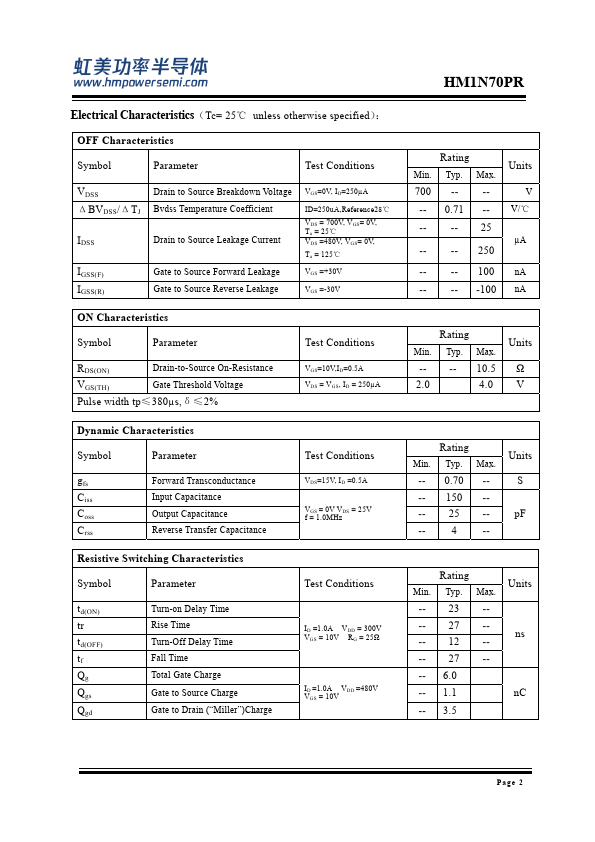

Additional preview pages of the HM1N70PR datasheet.

Product details

Description

HM1N70PR, the silicon N-channel Enhanced VDMOSFETs, is obtained by the self-aligned planar Technology which reduce the conduction loss, improve switching VDSS ID PD (TC=25℃) RDS(ON)Max 700 1.0 3 10.5 performance and enhance the avalanche energy.The transistor can be used in various power switching circuit for system miniaturization and higher efficiency.The package form is SOT-89-3L, which accords with the RoHS standard.

Features

z Fast Switching z Low ON Resistance(Rdson≤10.5Ω) z Low Gate Charge (Typical Data:6.0nC) z Low Reverse transfer capacitances(Typical:4pF) z 100% Single Pulse avalanche energy Test.
