HM1-6516-9

2K x 8 CMOS RAM

HM1-6516-9 Features

* Low Power Standby . . . . . . . . . . . . . . . . . . . 275µW Max

* Low Power Operation . . . . . . . . . . . . . 55mW/MHz Max

* Fast Access Time. . . . . . . . . . . . . . . . . . 120/200ns Max

* Industry Standard Pinout

* Single Supply . . . . . . . . . .

HM1-6516-9 General Description

The HM-6516 is a CMOS 2048 x 8 Static Random Access Memory. Extremely low power operation is achieved by the use of complementary MOS design techniques. This low power is further enhanced by the use of synchronous circuit techniques that keep the active (operating) power low, which also gives fast a.

HM1-6516-9 Datasheet (31.94 KB)

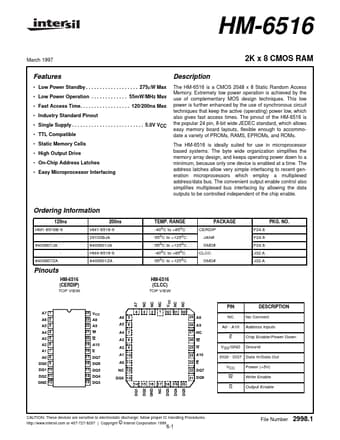

Preview of HM1-6516-9 PDF

Datasheet Details

Part number:

HM1-6516-9

Manufacturer:

Intersil Corporation

File Size:

31.94 KB

Description:

2k x 8 cmos ram.
