HM1-65162-9

2K x 8 Asynchronous CMOS Static RAM

HM1-65162-9 Features

* Fast Access Time. . . . . . . . . . . . . . . . . . . . 70/90ns Max

* Low Standby Current. . . . . . . . . . . . . . . . . . . .50µA Max

* Low Operating Current . . . . . . . . . . . . . . . . . 70mA Max

* Data Retention at 2.0V . . . . . . . . . . . . . . . . . . .

HM1-65162-9 General Description

The HM-65162 is a CMOS 2048 x 8 Static Random Access Memory manufactured using the Intersil Advanced SAJI V process. The device utilizes asynchronous circuit design for fast cycle time and ease of use. The pinout is the JEDEC 24 pin DIP, and 32 pad 8-bit wide standard which allows easy memory board .

HM1-65162-9 Datasheet (42.82 KB)

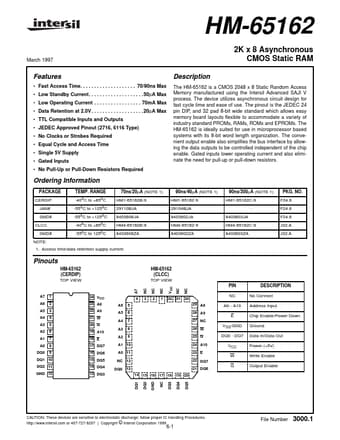

Preview of HM1-65162-9 PDF

Datasheet Details

Part number:

HM1-65162-9

Manufacturer:

Intersil Corporation

File Size:

42.82 KB

Description:

2k x 8 asynchronous cmos static ram.
