HM1-65162B-9 - 2K x 8 Asynchronous CMOS Static RAM

Product Overview

Intersil Corporation

📥 Download Datasheet

HM1-65162B-9 2K x 8 Asynchronous CMOS Static RAM by Intersil Corporation - Datasheet Preview — Datasheet preview – HM1-65162B-9

Datasheet Details

Part number	HM1-65162B-9
Manufacturer	Intersil Corporation
File Size	42.82 KB
Description	2K x 8 Asynchronous CMOS Static RAM
Datasheet	HM1-65162B-9 Datasheet

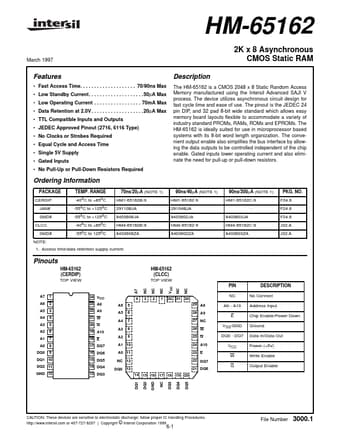

Additional preview pages of the HM1-65162B-9 datasheet.

Product details

Description

The HM-65162 is a CMOS 2048 x 8 Static Random Access Memory manufactured using the Intersil Advanced SAJI V process.

Features

Fast Access Time.
70/90ns Max.
Low Standby Current.
. . . . .50µA Max.
Low Operating Current.
. . 70mA Max.
Data Retention at 2.0V.
. . . .20µA Max.
TTL Compatible Inputs and Outputs.
JEDEC Approved Pinout (2716, 6116 Type).
No Clocks or Strobes Required.
Equal Cycle and Access Time.
Single 5V Supply.
