HM2N70R Datasheet - H&M Semiconductor

HM2N70R silicon N-channel Enhanced VDMOSFET

VDSS 700 V HM2N70R, the silicon N-channel Enhanced ID 2 A VDMOSFETs, is obtained by the self-aligned planar Technology PD (TC=25℃) 35 W which reduce the conduction loss, improve switching RDS(ON)Typ 4.7 Ω performance and enhance the avalanche energy. The transistor can be used in v.

HM2N70R Features

* l Fast Switching l Low ON Resistance(Rdson≤6.5Ω) l Low Gate Charge (Typical Data:8.5nC) l Low Reverse transfer capacitances(Typical:3.8pF) l 100% Single Pulse avalanche energy Test Applications： Power switch circuit of adaptor and charger. Absolute（Tc= 25℃ unless otherwise specified）： Symbol VDSS

HM2N70R-HMSemiconductor.pdf

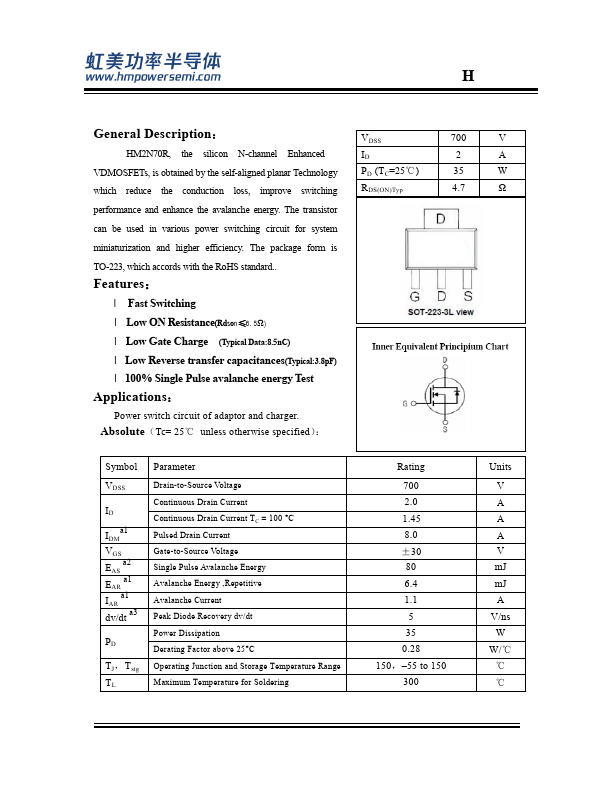

Preview of HM2N70R PDF

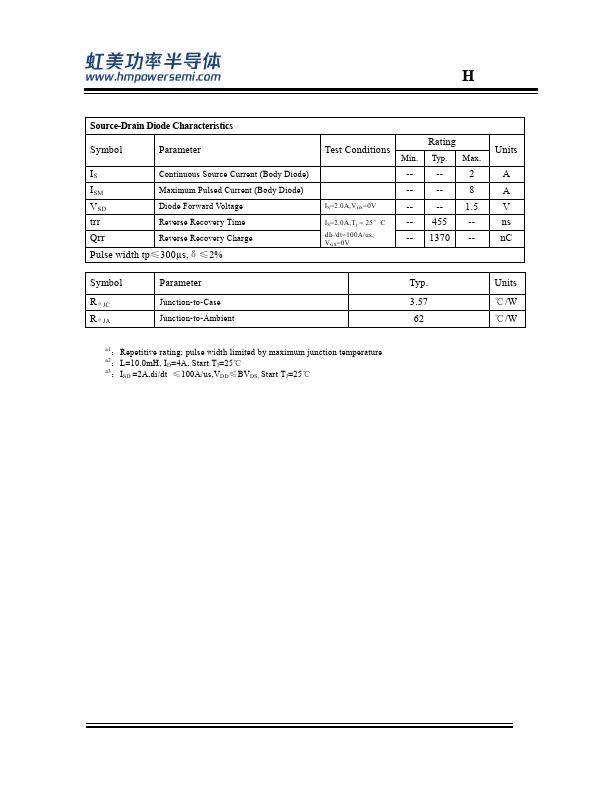

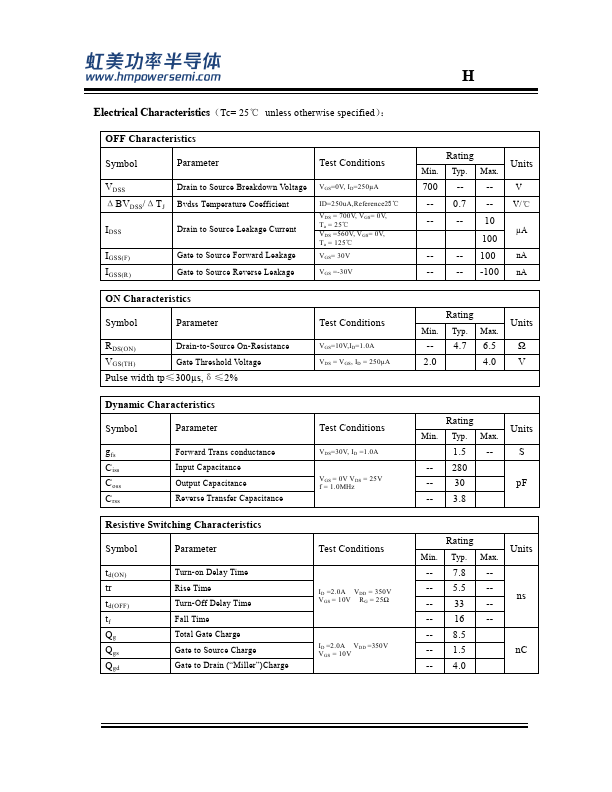

HM2N70R Datasheet Preview Page 2 HM2N70R Datasheet Preview Page 3

Datasheet Details

Part number:

HM2N70R

Manufacturer:

H&M Semiconductor

File Size:

522.75 KB

Description:

Silicon n-channel enhanced vdmosfet.
