HMS4444A Datasheet - H&M Semiconductor

HMS4444A N-Channel Super Trench Power MOSFET

The HMS4444A uses Super Trench technology that is uniquely optimized to provide the most efficient high frequency switching performance. Both conduction and switching power losses are minimized due to an extremely low combination of RDS(ON) and Qg. This device is ideal for high-frequency switching a.

HMS4444A Features

* VDS =80V,ID =17A RDS(ON)=6.8mΩ (typical) @ VGS=10V

* Excellent gate charge x RDS(on) product(FOM)

* Very low on-resistance RDS(on)

* 150 °C operating temperature

* Pb-free lead plating

* 100% UIS tested Application

* DC/DC Converter

* Ideal for high-frequency switch

HMS4444A-HMSemiconductor.pdf

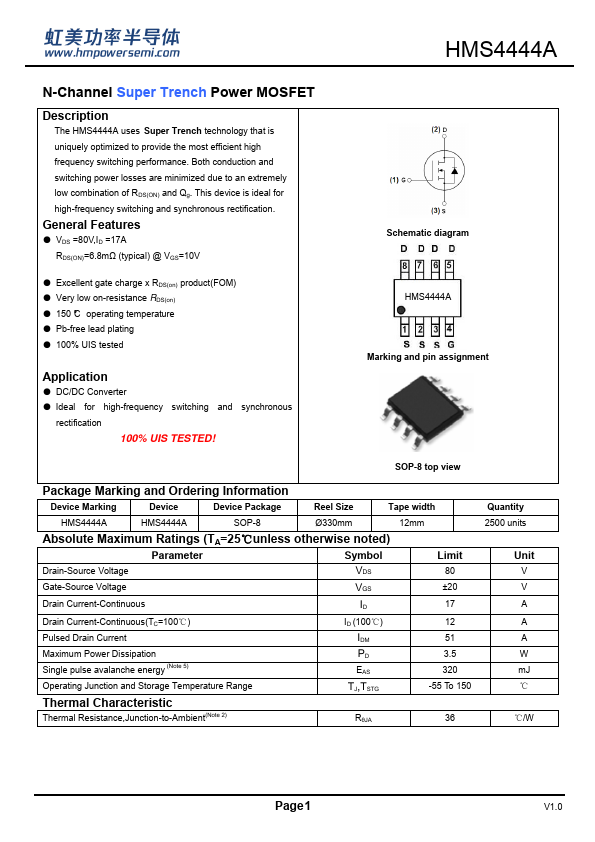

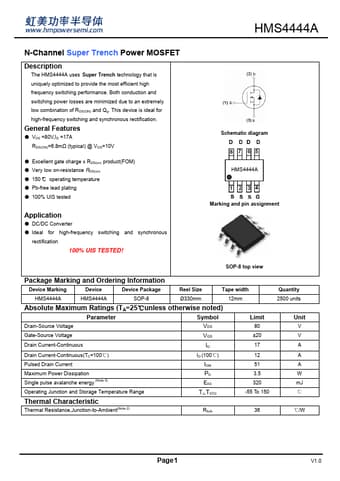

Preview of HMS4444A PDF

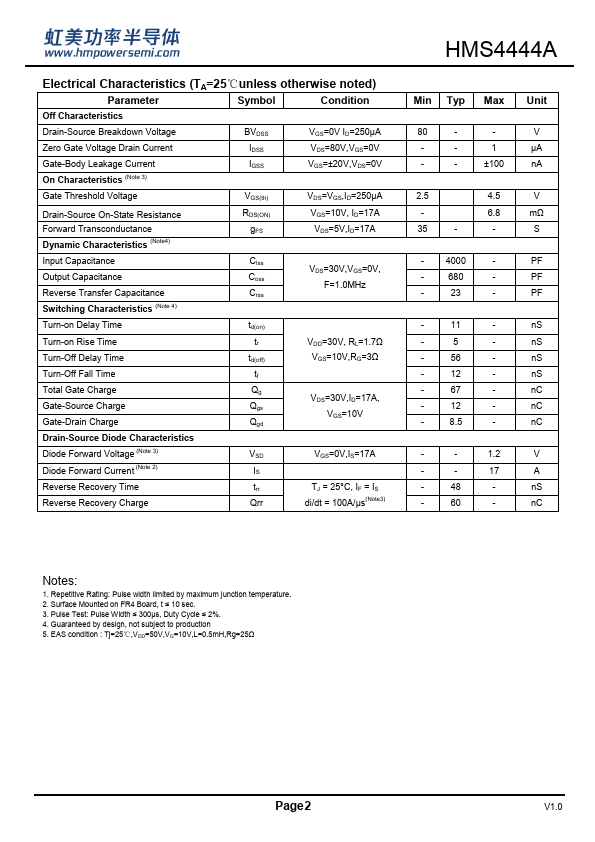

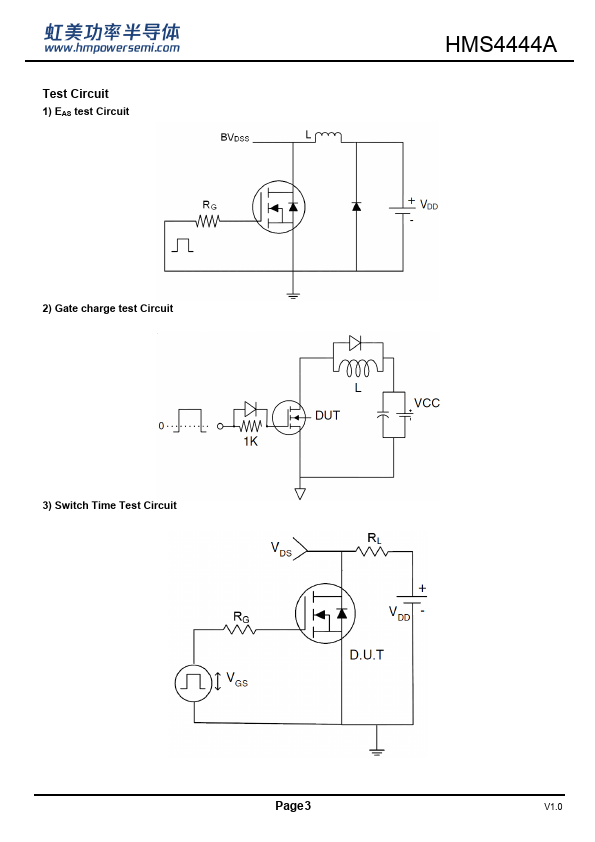

HMS4444A Datasheet Preview Page 2 HMS4444A Datasheet Preview Page 3

Datasheet Details

Part number:

HMS4444A

Manufacturer:

H&M Semiconductor

File Size:

503.33 KB

Description:

N-channel super trench power mosfet.
