HMS4444B Datasheet - H&M Semiconductor

HMS4444B N-Channel Super Trench Power MOSFET

The HMS4444B uses Super Trench technology that is uniquely optimized to provide the most efficient high frequency switching performance. Both conduction and switching power losses are minimized due to an extremely low combination of RDS(ON) and Qg. This device is ideal for high-frequency switching a.

HMS4444B Features

* VDS =80V,ID =10A RDS(ON)=16mΩ (typical) @ VGS=10V

* Excellent gate charge x RDS(on) product(FOM)

* Very low on-resistance RDS(on)

* 150 °C operating temperature

* Pb-free lead plating

* 100% UIS tested Application

* DC/DC Converter

* Ideal for high-frequency switchi

HMS4444B-HMSemiconductor.pdf

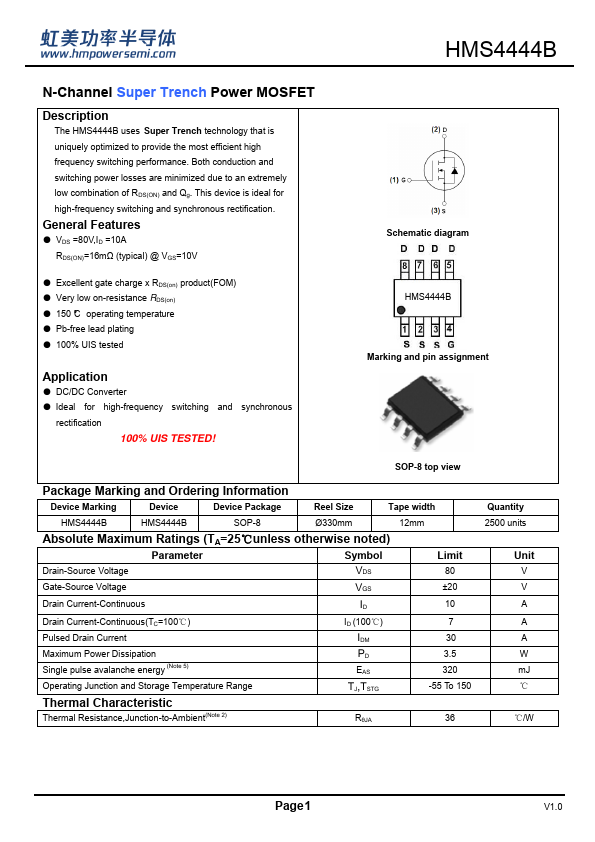

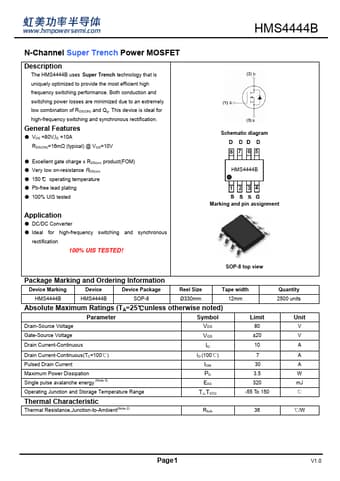

Preview of HMS4444B PDF

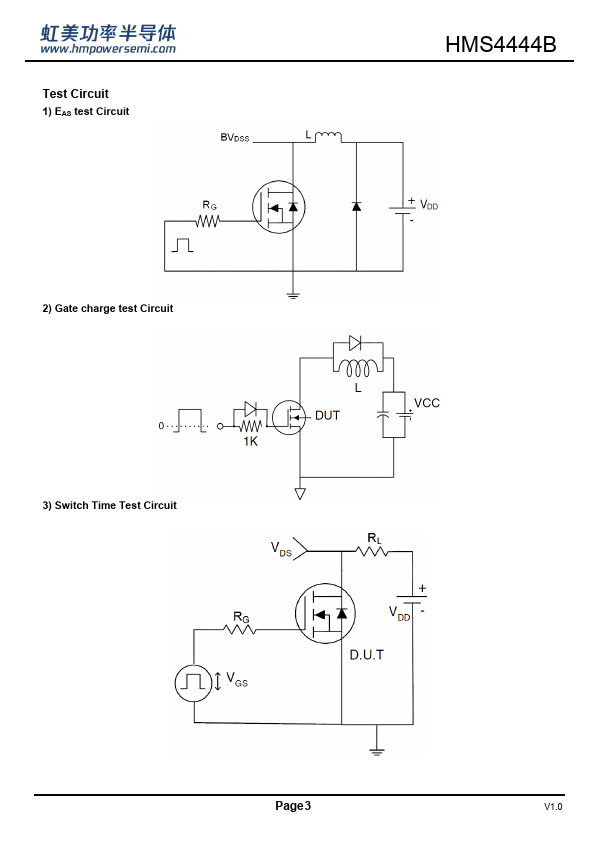

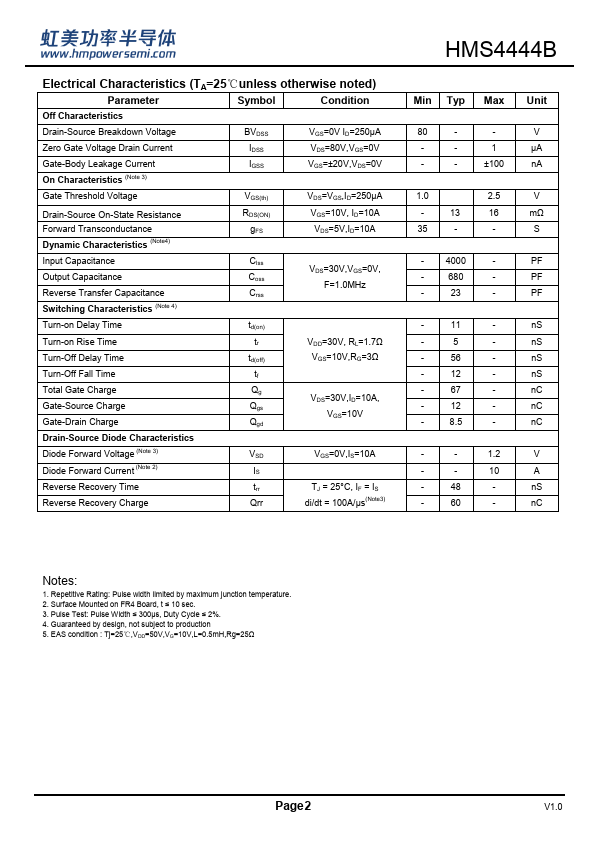

HMS4444B Datasheet Preview Page 2 HMS4444B Datasheet Preview Page 3

Datasheet Details

Part number:

HMS4444B

Manufacturer:

H&M Semiconductor

File Size:

575.43 KB

Description:

N-channel super trench power mosfet.
