HMS4454 Datasheet - H&M Semiconductor

HMS4454 N-Channel Super Trench Power MOSFET

The HMS4454 uses Super Trench technology that is uniquely optimized to provide the most efficient high frequency switching performance. Both conduction and switching power losses are minimized due to an extremely low combination of RDS(ON) and Qg. This device is ideal for high-frequency switching an.

HMS4454 Features

* VDS =100V,ID =8A RDS(on)<23mΩ(at VGS=10V RDS(on)<33mΩ(at VGS=4.5V

* Excellent gate charge x RDS(on) product(FOM)

* Very low on-resistance RDS(on)

* 150 °C operating temperature

* Pb-free lead plating

* 100% UIS tested Application

* DC/DC Converter

* Ideal for high-f

HMS4454-HMSemiconductor.pdf

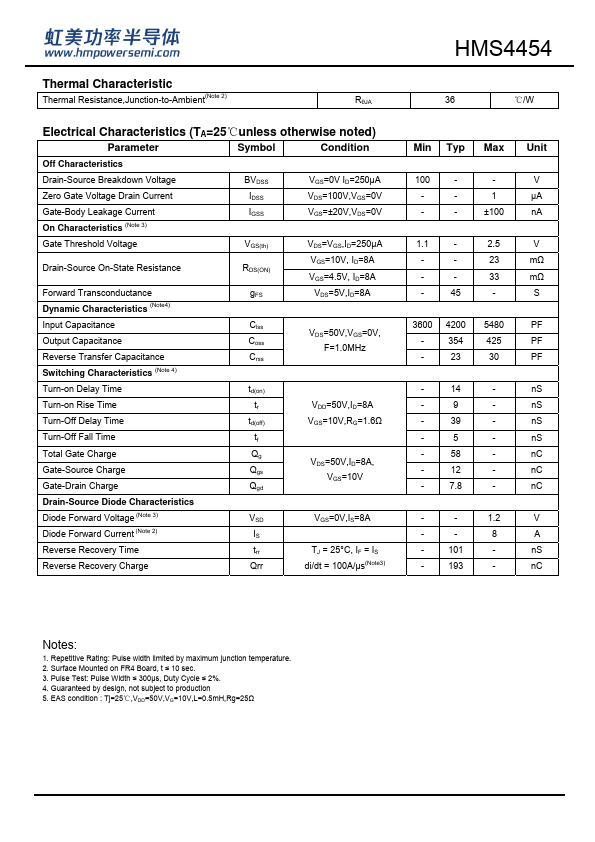

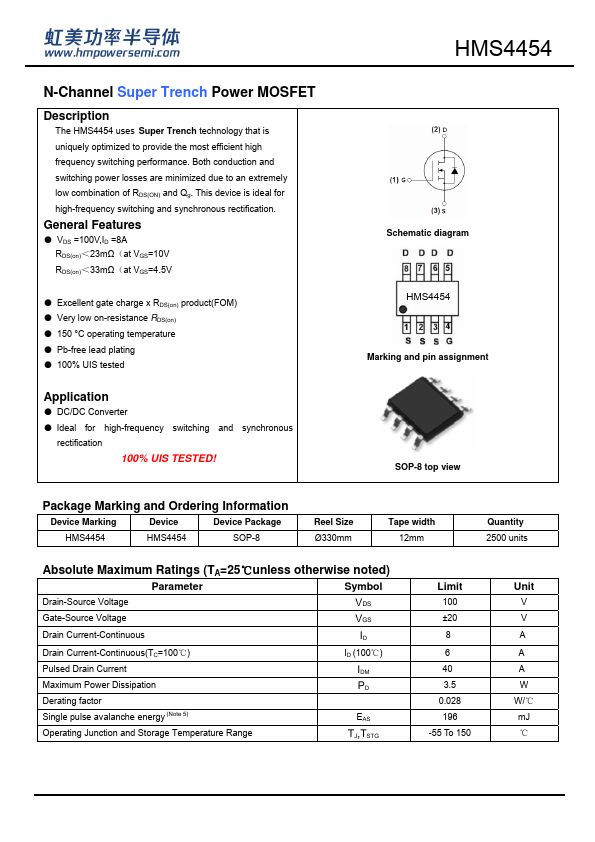

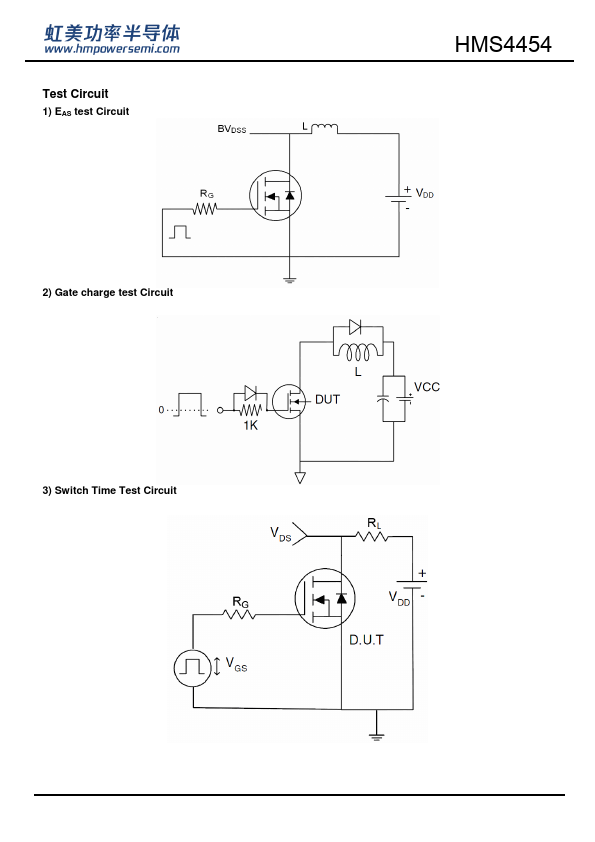

Preview of HMS4454 PDF
HMS4454 Datasheet Preview Page 2 HMS4454 Datasheet Preview Page 3

Datasheet Details

Part number:

HMS4454

Manufacturer:

H&M Semiconductor

File Size:

601.96 KB

Description:

N-channel super trench power mosfet.
