HGTD7N60C3S, HGTD7N60C3 - UFS Series N-Channel IGBT

HGTD7N60C3S Description

HGTD7N60C3, S E M I C O N D U C T O R HGTD7N60C3S, HGTP7N60C3 June 1996 14A, 600V, UFS Series N-Channel IGBT .
The HGTD7N60C3, HGTD7N60C3S and HGTP7N60C3 are MOS gated high voltage switching devices combining the best features of MOSFETs and bipolar transistor.

HGTD7N60C3S Features

* 14A, 600V at TC = +25oC
* 600V Switching SOA Capability
* Typical Fall Time - 140ns at TJ = +150oC
* Short Circuit Rating

HGTD7N60C3S Applications

* operating at moderate frequencies where low conduction losses are essential, such as: AC and DC motor controls, power supplies and drivers for solenoids, relays and contactors. PACKAGING AVAILABILITY PART NUMBER PACKAGE BRAND HGTD7N60C3 TO-251AA G7N60C HGTD7N60C3S TO-252AA G7N60

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: HGTD7N60C3S, HGTD7N60C3. Please refer to the document for exact specifications by model.

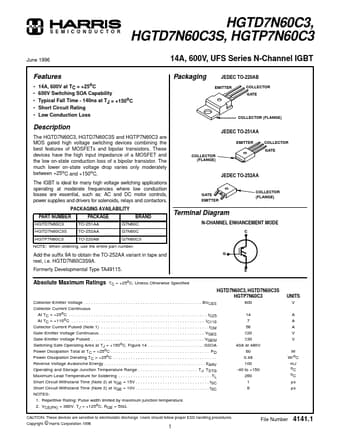

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
HGTD7N60C3S, HGTD7N60C3
Manufacturer
HARRIS
File Size
221.98 KB
Datasheet
HGTD7N60C3-HARRIS.pdf
Description
UFS Series N-Channel IGBT
Note
This datasheet PDF includes multiple part numbers: HGTD7N60C3S, HGTD7N60C3.
Please refer to the document for exact specifications by model.
