HGTD10N40F1S 10A/ 400V and 500V N-Channel IGBTs

The HGTD10N40F1, HGTD10N40F1S, HGTD10N50F1, and HGTD10N50F1S are n-channel enhancement-mode insulated gate bipolar transistors (IGBTs) designed for high voltage, low on-dissipation applications such as switching regulators and motor drivers. These types can be operated directly from low power integr.

HGTD10N40F1S Features

* 10A, 400V and 500V

* VCE(ON) 2.5V Max.

* TFALL ≤1.4µs

* Low On-State Voltage

* Fast Switching Speeds

* High Input Impedance Applications

* Power Supplies

* Motor Drives

* Protective Circuits COLLECTOR (FLANGE) GATE EMITTER H

HGTD10N40F1S Datasheet (33.07 KB)

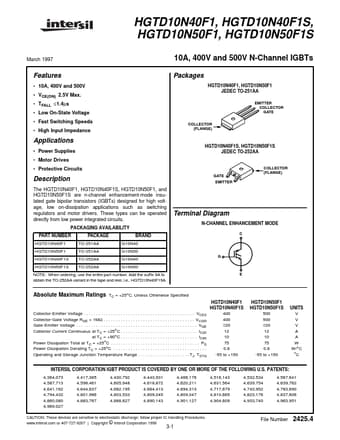

HGTD10N40F1S Datasheet Preview — Preview of HGTD10N40F1S PDF
