* 14A, 600V at TC = 25oC
* 600V Switching SOA Capability Typical Fall Time . . . . . . . . . . . . . . 140ns at TJ = 150oC Short Circuit Rating Low Conduction Loss COLLECTOR (FLANGE) Description The HGTD7N60C3, HGTD7N60C3S and HGTP7N60C3 are MOS gated
HGTD7N60C3 Datasheet (153.52 KB)
HGTD7N60C3
Fairchild Semiconductor
153.52 KB
14a/ 600v/ ufs series n-channel igbts.
S E M I C O N D U C T O R

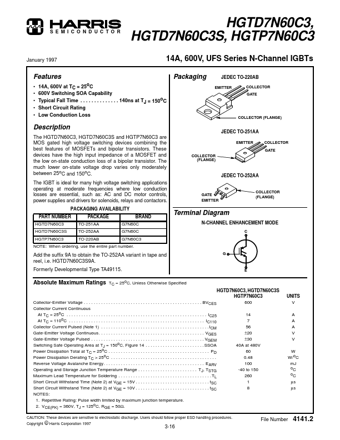

HGTD7N60C3, HGTD7N60C3S, HGTP7N60C3
14A, 600V, UFS Series N-Channel IGBTs
Packaging
JEDEC TO-220AB
EMITTER COLLECTOR GATE
.
