HGTG20N60C3R - N-Channel IGBTs

Product Overview

HARRIS

Datasheet Details

Part number	HGTG20N60C3R
Manufacturer	HARRIS
File Size	105.67 KB
Description	N-Channel IGBTs
Datasheet	HGTG20N60C3R Datasheet

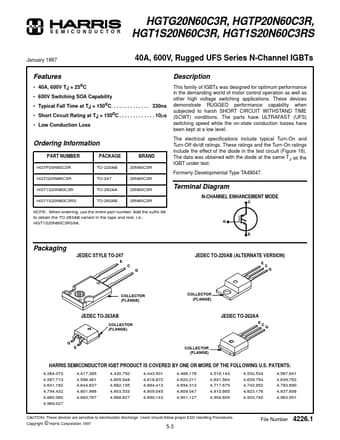

Additional preview pages of the HGTG20N60C3R datasheet.

Product details

Description

This family of IGBTs was designed for optimum performance in the demanding world of motor control operation as well as other high voltage switching applications.

Features

40A, 600V TJ = 25oC.
600V Switching SOA Capability.
Typical Fall Time at TJ = 150oC.
. . . 330ns.
Short Circuit Rating at TJ = 150oC.
. . . 10µs.
Low Conduction Loss.
