HGTG20N60C3D

N-Channel IGBT

HGTG20N60C3D Features

* of MOSFETs and bipolar transistors. This device has the high input impedance of a MOSFET and the low on-state conduction loss of a bipolar transistor. The much lower on-state voltage drop varies only moderately between 25 oC and 150oC. The IGBT used is development type TA49178. The diode used in ant

HGTG20N60C3D Datasheet (123.08 KB)

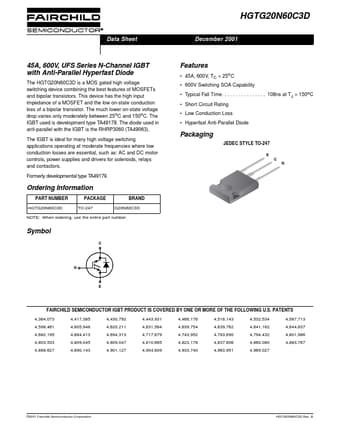

Preview of HGTG20N60C3D PDF

Datasheet Details

Part number:

HGTG20N60C3D

Manufacturer:

Fairchild Semiconductor

File Size:

123.08 KB

Description:

N-channel igbt.
HGTG20N60C3D Data Sheet December 2001 45A, 600V, UFS Series N-Channel IGBT with Anti-Parallel Hyperfast Diode The HGTG20N60C3D is a MOS gated high vo.
