HGT1S7N60C3D, HGTP7N60C3D, UFS Series N-Channel IGBT

HGTP7N60C3D, HGT1S7N60C3D, SEMICONDUCTOR HGT1S7N60C3DS January 1997 14A, 600V, UFS Series N-Channel IGBT with Anti-Parallel Hyperfast Diodes Feat.
The HGTP7N60C3D, HGT1S7N60C3D and HGT1S7N60C3DS are MOS gated high voltage switching devices combining the best features of MOSFETs and bipolar transi.

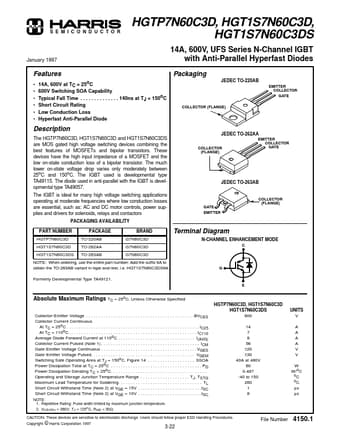

datasheet Preview Page 1 from Datasheet4u.com

HGTP7N60C3D-HARRIS.pdf

HGT1S7N60C3D Datasheet Preview — This datasheet PDF includes multiple part numbers: HGT1S7N60C3D, HGTP7N60C3D. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

HGT1S7N60C3D, HGTP7N60C3D

Manufacturer:

HARRIS

File Size:

196.80 KB

Description:

UFS Series N-Channel IGBT

Note:

This datasheet PDF includes multiple part numbers: HGT1S7N60C3D, HGTP7N60C3D.
Please refer to the document for exact specifications by model.

Features

* 14A, 600V at TC = 25oC
* 600V Switching SOA Capability
* Typical Fall Time
* . . . . 140ns at TJ = 150oC
* Short Circuit Rating
* Low Conduction Loss
* Hyperfast Anti-Parallel Diode Packaging JEDEC TO-220AB COLLECTOR (FLANGE) EMIT

Applications

* ope
