HGTD7N60C3 - UFS Series N-Channel IGBT

HGTD7N60C3 Description

HGTD7N60C3, S E M I C O N D U C T O R HGTD7N60C3S, HGTP7N60C3 June 1996 14A, 600V, UFS Series N-Channel IGBT .
The HGTD7N60C3, HGTD7N60C3S and HGTP7N60C3 are MOS gated high voltage switching devices combining the best features of MOSFETs and bipolar transistor.

HGTD7N60C3 Features

* 14A, 600V at TC = +25oC
* 600V Switching SOA Capability
* Typical Fall Time - 140ns at TJ = +150oC
* Short Circuit Rating

HGTD7N60C3 Applications

* operating at moderate frequencies where low conduction losses are essential, such as: AC and DC motor controls, power supplies and drivers for solenoids, relays and contactors. PACKAGING AVAILABILITY PART NUMBER PACKAGE BRAND HGTD7N60C3 TO-251AA G7N60C HGTD7N60C3S TO-252AA G7N60

📥 Download Datasheet

Preview of HGTD7N60C3 PDF

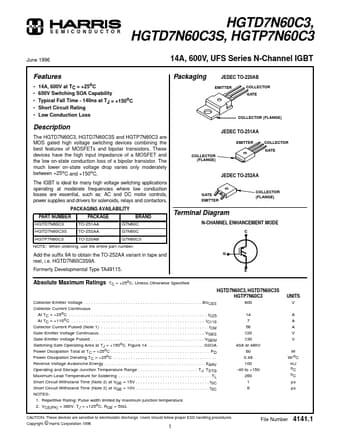

datasheet Preview Page 2 datasheet Preview Page 3
