HY19P03P - P-Channel Enhancement Mode MOSFET

HY19P03P Description

HY19P03P/B .
P-Channel Enhancement Mode MOSFET Pin Description z -30V/-90A RDS(ON)= 4.

HY19P03P Applications

* z Switching Application z Power Management for DC/DC Ordering and Marking Information P HY19P03 YYXXXJWW G B HY19P03 YYXXXJWW G P-Channel MOSFET Package Code P: TO-220FB-3L B: TO-263-2L Date Code YYXXX WW Assembly Material G:lead Free Device Note: H8$

📥 Download Datasheet

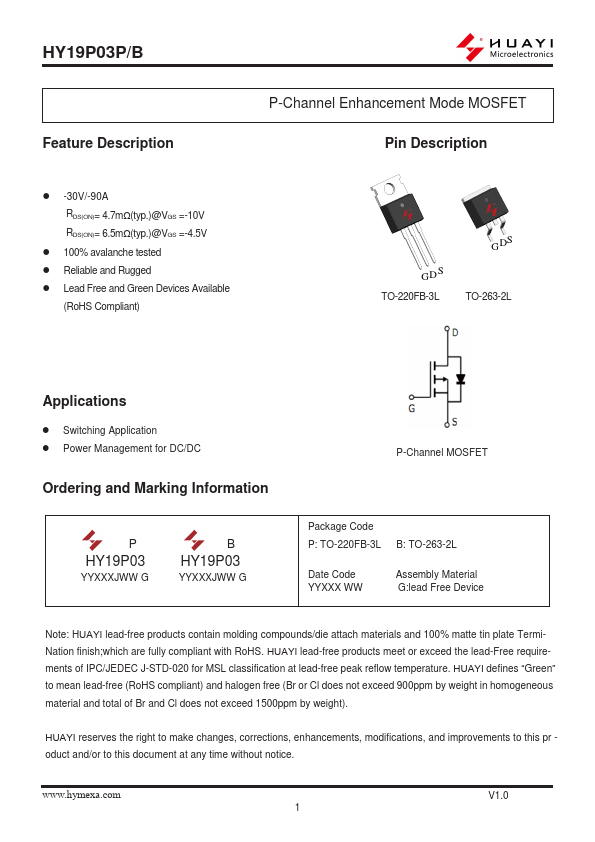

Preview of HY19P03P PDF

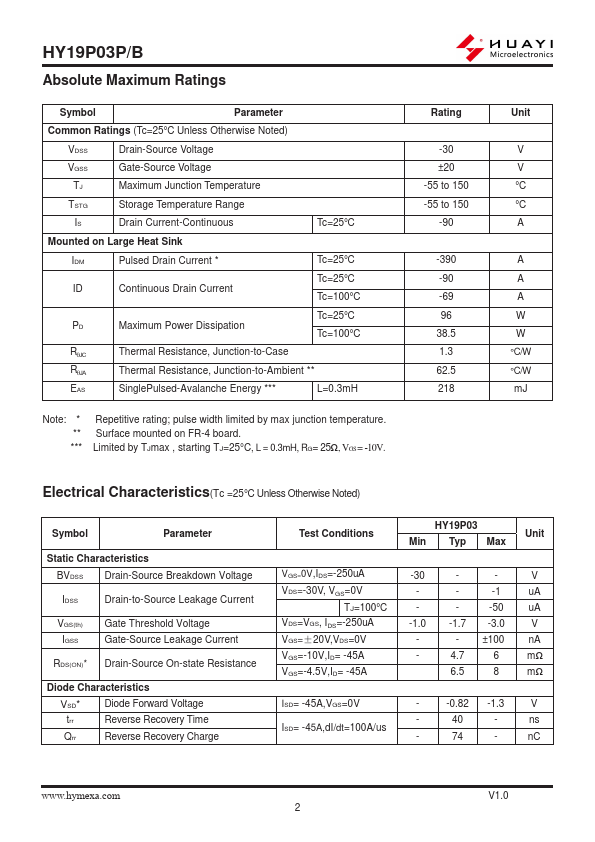

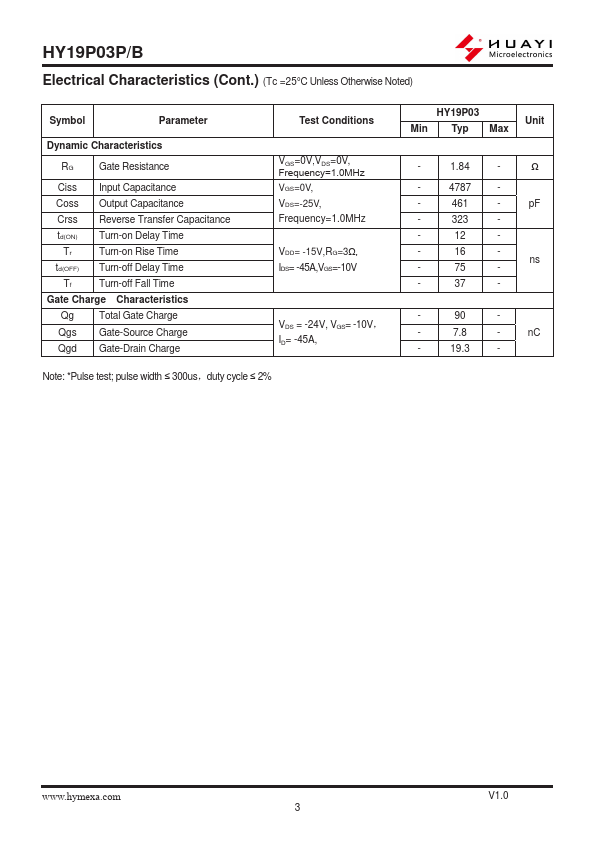

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
HY19P03P
Manufacturer
HOOYI
File Size
745.91 KB
Datasheet
HY19P03P-HOOYI.pdf
Description
P-Channel Enhancement Mode MOSFET
