2SD476K Silicon NPN Transistor

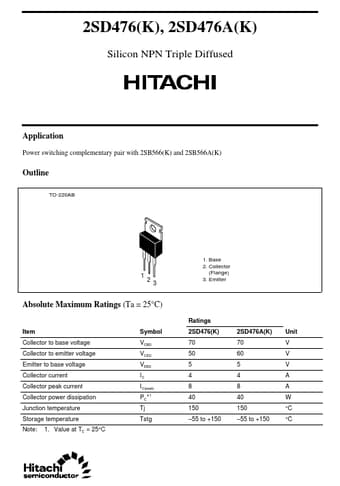

2SD476(K), 2SD476A(K) Silicon NPN Triple Diffused Application Power switching complementary pair with 2SB566(K) and 2SB566A(K) Outline TO-220AB 1 2 3 1. Base 2. Collector (Flange) 3. Emitter Absolute Maximum Ratings (Ta = 25°C) Ratings Item Collector to base voltage Collector to emitter voltage Emitter to base voltage Collector current Collector peak current Collector power dissipation Junction temperature Storage temperature Note: 1. Value at TC = 25°C Symbol VCBO VCEO VEBO IC I C(peak) P.
