2SD467 Silicon NPN Transistor

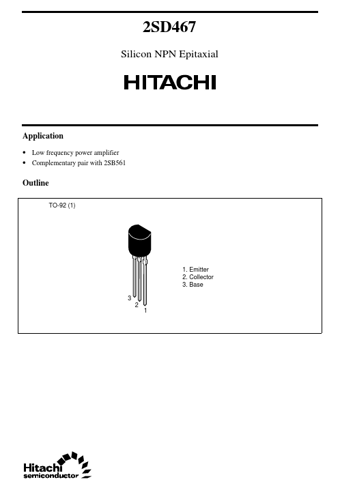

2SD467 Silicon NPN Epitaxial Application Low frequency power amplifier Complementary pair with 2SB561 Outline TO-92 (1) 1. Emitter 2. Collector 3. Base 3 2 1 2SD467 Absolute Maximum Ratings (Ta = 25°C) Item Collector to base voltage Collector to emitter voltage Emitter to base voltage Collector current Collector peak current Collector power dissipation Junction temperature Storage temperature Symbol VCBO VCEO VEBO IC iC(peak) PC Tj Tstg Ratings 25 20 5 0.7 1.0 0.5 150
