2SD468 - Silicon NPN Transistor

📥 Download Datasheet

Datasheet preview – 2SD468

Datasheet Details

Part number 2SD468
Manufacturer Hitachi Semiconductor
File Size 30.40 KB
Description Silicon NPN Transistor
Datasheet download datasheet 2SD468 Datasheet
Additional preview pages of the 2SD468 datasheet.

📁 Similar Datasheet

  • 2SD468 - NPN SILICON TRANSISTOR (UTC)
  • 2SD468 - Silicon NPN Transistor (Renesas)
  • 2SD468 - NPN Epitaxial Silicon Transistor (MCC)
  • 2SD460 - NPN Transistor (INCHANGE)
  • 2SD463 - NPN Transistor (INCHANGE)
  • 2SD467 - Silicon NPN Transistor (Renesas)
  • 2SD467 - Silicon NPN transistor (BLUE ROCKET ELECTRONICS)
  • 2SD469 - Silicon NPN Power Transistor (Inchange Semiconductor)
  • 2SD400 - PNP / NPN Epitaxial Planar Silicon Transistors (Sanyo Semicon Device)
  • 2SD400 - NPN Transistor (LGE)
Other Datasheets by Hitachi Semiconductor

Full PDF Text Transcription

Click to expand full text

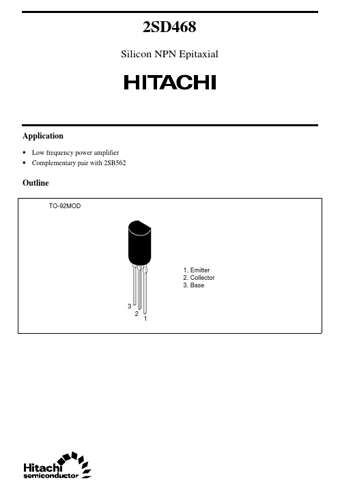

2SD468 Silicon NPN Epitaxial Application • Low frequency power amplifier • Complementary pair with 2SB562 Outline TO-92MOD 1. Emitter 2. Collector 3. Base 3 2 1 2SD468 Absolute Maximum Ratings (Ta = 25°C) Item Collector to base voltage Collector to emitter voltage Emitter to base voltage Collector current Collector peak current Collector power dissipation Junction temperature Storage temperature Symbol VCBO VCEO VEBO IC iC(peak) PC Tj Tstg Ratings 25 20 5 1.0 1.5 0.9 150 –55 to +150 Unit V V V A A W °C °C Electrical Characteristics (Ta = 25°C) Item Collector to base breakdown voltage Symbol V(BR)CBO Min 25 20 5 — 1 Typ — — — — — 0.2 0.79 190 22 Max — — — 1.0 240 0.5 1.
