2SC5702 Datasheet, Transistor, Hitachi

2SC5702 Features

  • Transistor
  • High gain bandwidth product fT = 8 GHz typ.
  • High power gain and low noise figure ; PG = 13 dB typ., NF = 1.05 dB typ. at f = 900 MHz Outline MFPAK 3 1 2 1. Emitter

PDF File Details

Part number:

2SC5702

Manufacturer:

Hitachi

File Size:

136.54kb

Download:

📄 Datasheet

Description:

Silicon npn transistor.

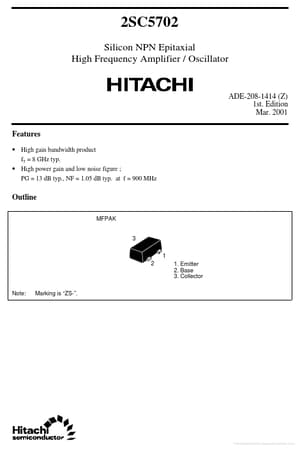

Datasheet Preview: 2SC5702 📥 Download PDF (136.54kb)
Page 2 of 2SC5702 Page 3 of 2SC5702
