IDT723672 Datasheet - IDT

(IDT7236x2) CMOS SyncBiFIFO

IDT723672 Features

* Memory storage capacity: IDT723652

* 2,048 x 36 x 2 IDT723662

* 4,096 x 36 x 2 IDT723672

* 8,192 x 36 x 2 Supports clock frequencies up to 83MHz Fast access times

IDT723672 General Description

The IDT723652/723662/723672 is a monolithic, high-speed, low-power, CMOS Bidirectional SyncFIFO (clocked) memories which support clock frequencies up to 83MHz and have read access times as fast as 8ns. Two independent 2,048/4,096/8,192 x 36 dual-port SRAM FIFOs on board each chip buffer data in oppo.

IDT723672 Datasheet (283.67 KB)

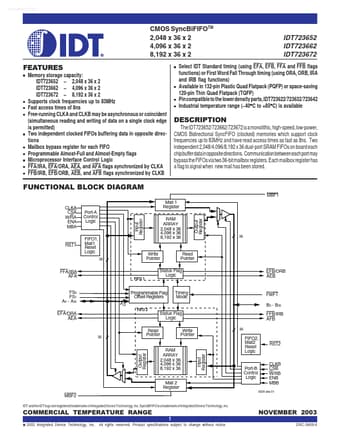

Preview of IDT723672 PDF

Datasheet Details

Part number:

IDT723672

Manufacturer:

IDT

File Size:

283.67 KB

Description:

(idt7236x2) cmos syncbififo.
