IDT723674, IDT723654 Datasheet - IDT

IDT723674 (IDT7236x4) CMOS SyncBiFIFO

The IDT723654/723664/723674 is a monolithic, high-speed, low-power, CMOS bidirectional synchronous (clocked) FIFO memory which supports clock frequencies up to 83 MHz and has read access times as fast as 8ns. Two independent 2,048/4,096/8,192 x 36 dual-port SRAM FIFOs on board each chip buffer data .

IDT723674 Features

* Memory storage capacity: IDT723654

* 2,048 x 36 x 2 IDT723664

* 4,096 x 36 x 2 IDT723674

* 8,192 x 36 x 2 Clock frequencies up to 83 MHz (8ns access tim

IDT723654_IDT.pdf

This datasheet PDF includes multiple part numbers: IDT723674, IDT723654. Please refer to the document for exact specifications by model.

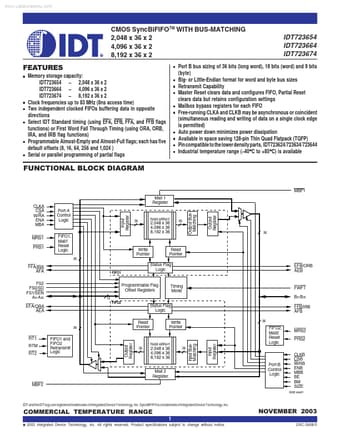

IDT723674 Datasheet Preview Page 2 IDT723674 Datasheet Preview Page 3

Datasheet Details

Part number:

IDT723674, IDT723654

Manufacturer:

IDT

File Size:

421.33 KB

Description:

(idt7236x4) cmos syncbififo.

Note:

This datasheet PDF includes multiple part numbers: IDT723674, IDT723654.
Please refer to the document for exact specifications by model.
