2SB1165 PNP Transistor

2SB1165 Description

isc Silicon PNP Power Transistor .
Low Collector Saturation Voltage- : VCE(sat)= -0. High fT. Good Linearity of hFE. Fast switching time. Complemen.

2SB1165 Applications

* Designed for relay drivers,high-speed inverters and converters applications. ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VCBO VCEO VEBO Collector-Base Voltage Collector-Emitter Voltage Emitter-Base Voltage -60 V -50 V -6 V IC Collector Current-Continuous -5 A

📥 Download Datasheet

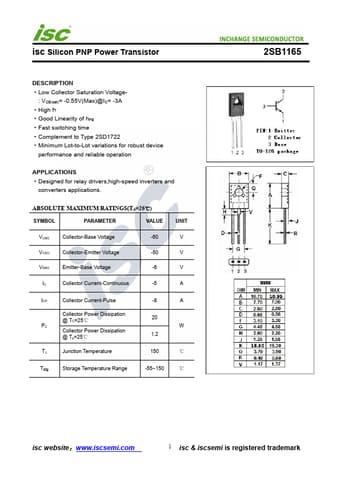

Preview of 2SB1165 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
2SB1165
Manufacturer
INCHANGE
File Size
213.13 KB
Datasheet
2SB1165-INCHANGE.pdf
Description
PNP Transistor
