2SC2371 - NPN Transistor

2SC2371 Description

isc Silicon NPN Power Transistor .
Collector-Emitter Breakdown Voltage- : V(BR)CEO= 300V(Min). Wide Area of Safe Operation. Minimum Lot-to-Lot variations for robust device.

2SC2371 Applications

* Designed for video applications. ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VCBO Collector-Base Voltage 300 V VCEO Collector-Emitter Voltage 300 V VEBO Emitter-Base Voltage 7 V IC Collector Current-Continuous PC Collector Power Dissipation @TC=25℃ TJ Juncti

📥 Download Datasheet

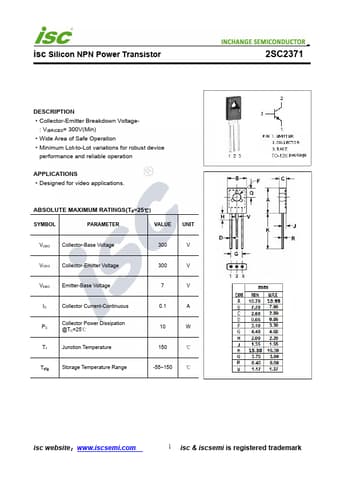

Preview of 2SC2371 PDF
datasheet Preview Page 2

Datasheet Details

Part number
2SC2371
Manufacturer
INCHANGE
File Size
206.08 KB
Datasheet
2SC2371-INCHANGE.pdf
Description
NPN Transistor
