2SD114 - NPN Transistor

Product Overview

📥 Download Datasheet

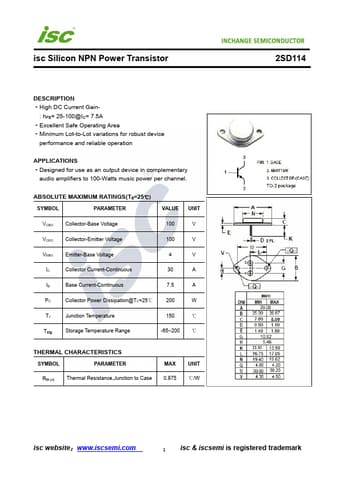

Datasheet preview – 2SD114

Datasheet Details

Part number 2SD114
Manufacturer INCHANGE
File Size 200.68 KB
Description NPN Transistor
Datasheet download datasheet 2SD114 Datasheet
Additional preview pages of the 2SD114 datasheet.

Product details

Description

High DC Current Gain- : hFE= 25-100@IC= 7.5A Excellent Safe Operating Area Minimum Lot-to-Lot variations for robust device performance and reliable operation APPLICATIONS Designed for use as an output device in complementary audio amplifiers to 100-Watts music power per channel.ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VCBO Collector-Base Voltage 100 V VCEO Collector-Emitter Voltage 100 V VEBO Emitter-Base Voltage 4 V IC Collector Current
