2SD1142 - NPN Transistor

2SD1142 Description

isc Silicon NPN Power Transistor INCHANGE Semiconductor 2SD1142 .
High Breakdown Voltage- : VCBO= 1500V (Min). Collector-Emitter Saturation Voltage- : VCE(sat)= 4. Built-in Damper Diod.

2SD1142 Applications

* Designed for horizontal deflection output applications. ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VCBO Collector-Base Voltage 1500 V VCEO Collector-Emitter Voltage 600 V VEBO Emitter-Base Voltage 6 V IC Collector Current- Continuous 3.5 A ICP Collector

📥 Download Datasheet

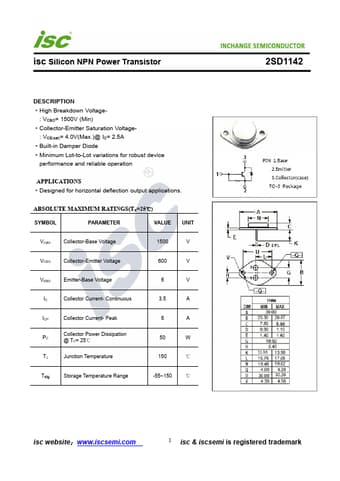

Preview of 2SD1142 PDF
