2SD1691 - NPN Transistor

2SD1691 Description

isc Silicon NPN Power Transistor .
High Collector Current -IC= 5A. Low Collector Saturation Voltage : VCE(sat)= 0. Complement to Type 2SB1151. Minimum.

2SD1691 Applications

* Designed for use in DC-DC converter, or driver of solenoid or motor. ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VCBO Collector-Base Voltage 60 V VCEO Collector-Emitter Voltage 60 V VEBO Emitter-Base Voltage 7 V IC Collector Current-Continuous 5 A ICP Col

📥 Download Datasheet

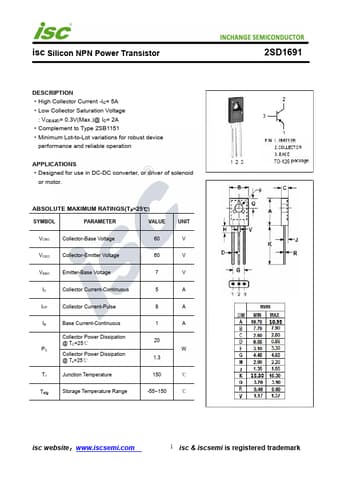

Preview of 2SD1691 PDF
datasheet Preview Page 2

Datasheet Details

Part number
2SD1691
Manufacturer
INCHANGE
File Size
206.55 KB
Datasheet
2SD1691-INCHANGE.pdf
Description
NPN Transistor
