2SD1601 - Power Transistor

Datasheet Summary

Description

Collector-Emitter Breakdown Voltage- : V(BR)CEO= 60V(Min) High DC Current Gain : hFE= 1000(Min) @IC= 2A Complement to Type 2SB1101 Minimum Lot-to-Lot variations for robust device performance and reliable operation APPLICATIONS Designed for low frequency power amplifiers appl

📥 Download Datasheet

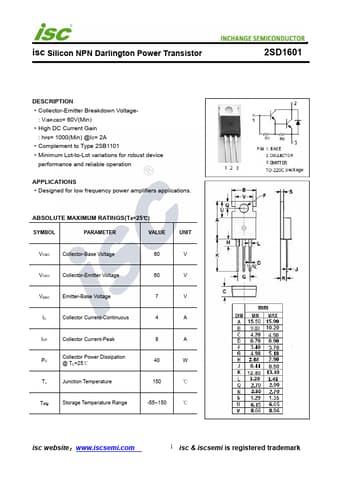

Datasheet preview – 2SD1601

Datasheet Details

Part number 2SD1601
Manufacturer Inchange Semiconductor
File Size 210.87 KB
Description Power Transistor
Datasheet download datasheet 2SD1601 Datasheet
Additional preview pages of the 2SD1601 datasheet.

📁 Similar Datasheet

  • 2SD1600 - NPN Transistor (INCHANGE)
  • 2SD1603 - Silicon NPN Darlington Power Transistor (Inchange Semiconductor Company)
  • 2SD1603 - NPN Transistor (Hitachi Semiconductor)
  • 2SD1604 - NPN Transistor (Hitachi Semiconductor)
  • 2SD1606 - Silicon NPN Transistor (Hitachi Semiconductor)
  • 2SD1607 - NPN Transistor (INCHANGE)
  • 2SD1609 - NPN Transistor (INCHANGE)
  • 2SD1609 - Silicon NPN Transistor (Hitachi Semiconductor)
  • 2SD1609 - NPN TRANSISTOR (UTC)
  • 2SD1609 - Silicon NPN transistor (BLUE ROCKET ELECTRONICS)
Other Datasheets by Inchange Semiconductor

Full PDF Text Transcription

Click to expand full text
isc Silicon NPN Darlington Power Transistor 2SD1601 DESCRIPTION ·Collector-Emitter Breakdown Voltage- : V(BR)CEO= 60V(Min) ·High DC Current Gain : hFE= 1000(Min) @IC= 2A ·Complement to Type 2SB1101 ·Minimum Lot-to-Lot variations for robust device performance and reliable operation APPLICATIONS ·Designed for low frequency power amplifiers applications. ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VCBO Collector-Base Voltage 60 V VCEO Collector-Emitter Voltage 60 V VEBO Emitter-Base Voltage 7 V IC Collector Current-Continuous 4 A ICP Collector Current-Peak PC Collector Power Dissipation @ TC=25℃ TJ Junction Temperature 8 A 40 W 150 ℃ Tstg Storage Temperature Range -55~150 ℃ isc website：www.iscsemi.
