2SD1605 - Power Transistor

Datasheet Summary

Description

Collector-Emitter Breakdown Voltage- : V(BR)CEO= 120V(Min) High DC Current Gain : hFE= 1000(Min) @IC= 1.5A Complement to Type 2SB1105 Minimum Lot-to-Lot variations for robust device performance and reliable operation APPLICATIONS Designed for low frequency power amplifiers a

📥 Download Datasheet

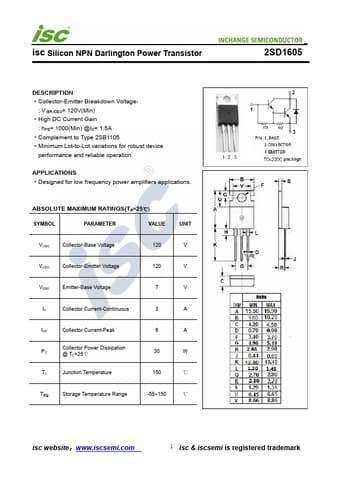

Datasheet preview – 2SD1605

Datasheet Details

Part number 2SD1605
Manufacturer Inchange Semiconductor
File Size 210.28 KB
Description Power Transistor
Datasheet download datasheet 2SD1605 Datasheet
