2SD1692 - NPN Transistor

Datasheet Summary

Description

Collector Emitter Sustaining Voltage : VCEO(SUS) = 100V(min.) DC Current Gain : hFE = 2000(Min.) @ IC= 1.5 A Complement to Type 2SB1149 Minimum Lot-to-Lot variations for robust device performance and reliable operation APPLICATIONS Designed for gene

📥 Download Datasheet

Datasheet preview – 2SD1692

Datasheet Details

Part number 2SD1692
Manufacturer INCHANGE
File Size 207.74 KB
Description NPN Transistor
Datasheet download datasheet 2SD1692 Datasheet
Additional preview pages of the 2SD1692 datasheet.

📁 Similar Datasheet

  • 2SD1692 - NPN Transistor (NEC)
  • 2SD1691 - NPN SILICON TRANSISTOR (UTC)
  • 2SD1691 - SILICON POWER TRANSISTOR (SavantIC)
  • 2SD1691T - NPN Silicon Epitaxial Power Transistor (SEMTECH)
  • 2SD1693 - NPN SILICON DARLINGTON TRANSISTOR (NEC)
  • 2SD1694 - NPN SILICON POWER TRANSISTOR (NEC)
  • 2SD1695 - NPN SILICON EPITAXIAL TRANSISTOR (NEC)
  • 2SD1697 - NPN SILICON TRANSISTOR (NEC)
  • 2SD1698 - NPN SILICON TRANSISTOR (NEC)
  • 2SD1699 - NPN Silicon Epitaxial Transistor (NEC)
Other Datasheets by INCHANGE

Full PDF Text Transcription

Click to expand full text

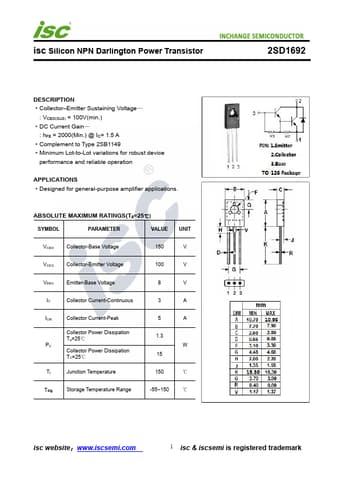

isc Silicon NPN Darlington Power Transistor DESCRIPTION ·Collector–Emitter Sustaining Voltage— : VCEO(SUS) = 100V(min.) ·DC Current Gain— : hFE = 2000(Min.) @ IC= 1.5 A ·Complement to Type 2SB1149 ·Minimum Lot-to-Lot variations for robust device performance and reliable operation APPLICATIONS ·Designed for general-purpose amplifier applications. ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VCBO Collector-Base Voltage 150 V VCEO Collector-Emitter Voltage 100 V VEBO Emitter-Base Voltage 8 V IC Collector Current-Continuous 3 A ICM Collector Current-Peak Collector Power Dissipation Ta=25℃ PC Collector Power Dissipation TC=25℃ Ti Junction Temperature 5 A 1.3 W 15 150 ℃ Tstg Storage Temperature Range -55~150 ℃ 2SD1692 isc website：www.iscsemi.
