2SD1764 NPN Transistor

2SD1764 Description

INCHANGE Semiconductor isc Silicon NPN Darlington Power Transistor 2SD1764 .
High DC Current Gain : hFE= 1000(Min) @IC= 1A. Low Collector Saturation Voltgae- : VCE(sat)= 1. Bullt-in damper diode.

2SD1764 Applications

* Designed forr Motor，Relay and Solenoid driver applications ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VCBO Collector-Base Voltage 50-70 V VCEO Collector-Emitter Voltage 50-70 V VEBO Emitter-Base Voltage 6 V IC Collector Current-Continuous 2 A ICP Collect

📥 Download Datasheet

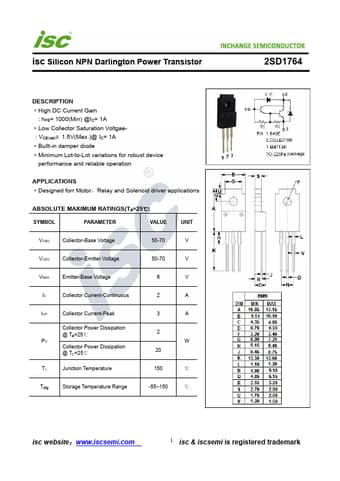

Preview of 2SD1764 PDF
datasheet Preview Page 2

Datasheet Details

Part number
2SD1764
Manufacturer
INCHANGE
File Size
184.60 KB
Datasheet
2SD1764-INCHANGE.pdf
Description
NPN Transistor
