B1353 - Silicon PNP Power Transistor

Description

Good Linearity of hFE Collector-Emitter Breakdown Voltage- : V(BR)CEO= -120V(Min) Complement to Type 2SD2033 APPLICATIONS

Designed for use in high voltage driver applications.

INCHANGE

📥 Download Datasheet

Datasheet Details

Part number	B1353
Manufacturer	INCHANGE
File Size	176.67 KB
Description	Silicon PNP Power Transistor
Datasheet	B1353 Datasheet
Additional preview pages of the B1353 datasheet.

📁 Similar Datasheet

B1351 - 2SB1351 (Sanken Electric)
B1357 - 2SB1357 (Rohm)
B130 - 1.0A SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER (Diodes Incorporated)
B130 - SCHOTTKY BARRIER RECTIFIER (EIC)
B130-E3 - Surface Mount Schottky Barrier Rectifier (Vishay)
B130-M3 - Surface Mount Schottky Barrier Rectifier (Vishay)
B1301 - PNP SIlicon Transistor (Renesas)
B1302 - PNP Epitaxial Planar Silicon Transistor (Sanyo)
B130B - 1.0A SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER (Diodes Incorporated)
B130BQ - 1.0A SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER (Diodes)

Other Datasheets by INCHANGE

B1370 - PNP Transistor

Full PDF Text Transcription

Click to expand full text

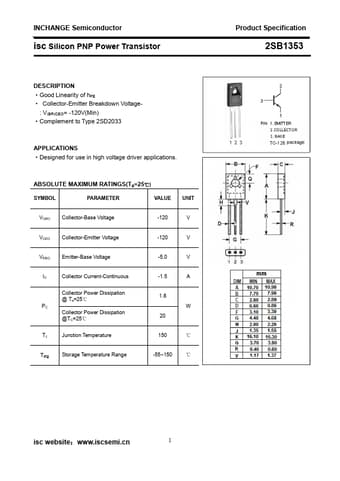

INCHANGE Semiconductor isc Silicon PNP Power Transistor DESCRIPTION ·Good Linearity of hFE · Collector-Emitter Breakdown Voltage- : V(BR)CEO= -120V(Min) ·Complement to Type 2SD2033 APPLICATIONS ·Designed for use in high voltage driver applications. ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VCBO Collector-Base Voltage -120 V VCEO Collector-Emitter Voltage -120 V VEBO Emitter-Base Voltage -5.0 V IC Collector Current-Continuous Collector Power Dissipation @ Ta=25℃ PC Collector Power Dissipation @TC=25℃ TJ Junction Temperature Tstg Storage Temperature Range -1.5 A 1.8 W 20 150 ℃ -55~150 ℃ Product Specification 2SB1353 isc website：www.iscsemi.
