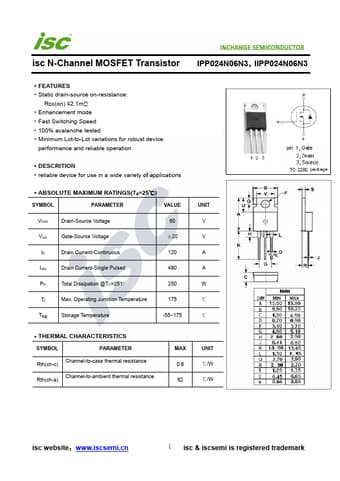

IPP024N06N3 Datasheet, Mosfet, INCHANGE

IPP024N06N3 Features

• Mosfet
• Static drain-source on-resistance: RDS(on) ≤2.1mΩ
• Enhancement mode
• Fast Switching Speed
• 100% avalanche tested
• Minimum Lot-to-Lot variations

PDF File Details

Part number:

IPP024N06N3

Manufacturer:

INCHANGE

File Size:

247.52kb

Download:

📄 Datasheet

Description:

N-channel mosfet.

IPP024N06N3 Application

• Applications
• ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE VDSS Drain-Source Voltage 60 VGS Gate-Source Voltage ±20 ID
