IRFI1310N Datasheet - INCHANGE

IRFI1310N, N-Channel MOSFET

Isc N-Channel MOSFET Transistor INCHANGE Semiconductor IRFI1310N *.

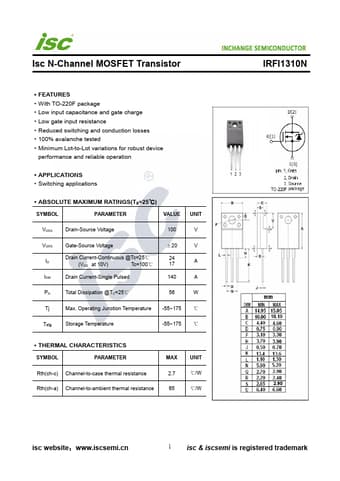

datasheet Preview Page 1 from Datasheet4u.com

IRFI1310N-INCHANGE.pdf

IRFI1310N Datasheet Preview — Preview of IRFI1310N PDF

Datasheet Details

Part number:

IRFI1310N

Manufacturer:

INCHANGE

File Size:

218.31 KB

Description:

N-Channel MOSFET

Features

* With TO-220F package
* Low input capacitance and gate charge
* Low gate input resistance
* Reduced switching and conduction losses
* 100% avalanche tested
* Minimum Lot-to-Lot variations for robust device performance and reliable operation

Applications

* Switching applications
* ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VDSS Drain-Source Voltage 100 V VGSS Gate-Source Voltage ±20 V ID Drain Current-Continuous @Tc=25℃ (VGS at 10V) Tc=100℃ 24 17 A IDM Drain Current-Single Pulsed 140 A PD Total Dissip
