IXTA300N04T2 Datasheet - INCHANGE

IXTA300N04T2, N-Channel MOSFET

isc N-Channel MOSFET Transistor *.

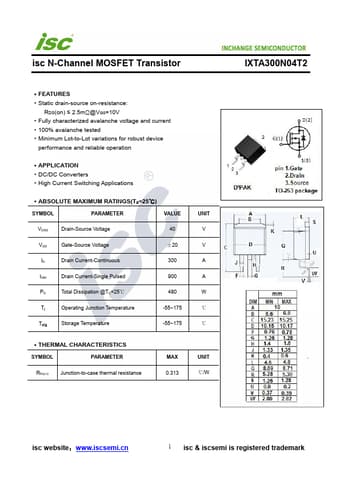

datasheet Preview Page 1 from Datasheet4u.com

IXTA300N04T2-INCHANGE.pdf

IXTA300N04T2 Datasheet Preview — Preview of IXTA300N04T2 PDF

Datasheet Details

Part number:

IXTA300N04T2

Manufacturer:

INCHANGE

File Size:

251.14 KB

Description:

N-Channel MOSFET

Features

* Static drain-source on-resistance: RDS(on) ≤ 2.5mΩ@VGS=10V
* Fully characterized avalanche voltage and current
* 100% avalanche tested
* Minimum Lot-to-Lot variations for robust device performance and reliable operation

Applications

* ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE VDSS Drain-Source Voltage 40 VGS Gate-Source Voltage ±20 ID Drain Current-Continuous 300 IDM Drain Current-Single Pulsed 900 PD Total Dissipation @TC=25℃ 480 Tj Operating Junction Temperature -55~175 Tstg Storage Te
