IXTA340N04T4 - Power MOSFET

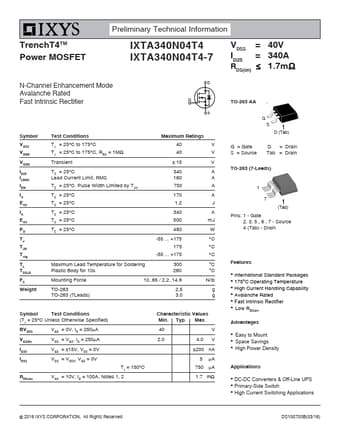

TrenchT4TM Power MOSFET Preliminary Technical Information IXTA340N04T4 IXTA340N04T4-7 VDSS = ID25 = RDS(on)  40V 340A 1.7m N-Channel Enhancement Mode Avalanche Rated Fast Intrinsic Rectifier TO-263 AA Symbol VDSS VDGR VGSM ID25 ILRMS IDM IA EAS IA EAS PD TJ TJM Tstg TL TSOLD FC Weight Test Conditions TJ = 25C to 175C TJ = 25C to 175C, RGS = 1M Transient TC = 25C Lead Current Limit, RMS TC = 25C, Pulse Width Limited by TJM TC = 25C TC = 25C TC = 25C TC = 25C TC = 25C Maximu.

IXTA340N04T4 Features

* International Standard Packages

* 175°C Operating Temperature

* High Current Handling Capability

* Avalanche Rated

* Fast Intrinsic Rectifier

* Low RDS(on) Advantages

* Easy to Mount

* Space Savings

* High Power Density Applications

* DC-DC Converters & Off-
