IXTH50N30 Datasheet - INCHANGE

IXTH50N30, N-Channel MOSFET

isc N-Channel MOSFET Transistor *.

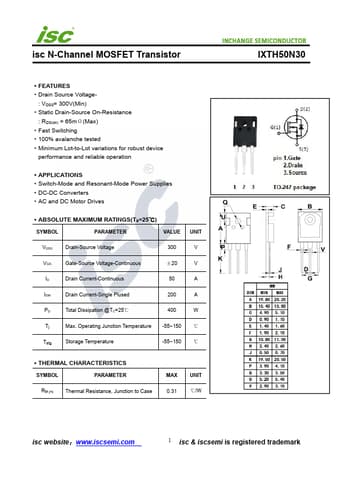

datasheet Preview Page 1 from Datasheet4u.com

IXTH50N30-INCHANGE.pdf

IXTH50N30 Datasheet Preview — Preview of IXTH50N30 PDF

Datasheet Details

Part number:

IXTH50N30

Manufacturer:

INCHANGE

File Size:

331.87 KB

Description:

N-Channel MOSFET

Features

* Drain Source Voltage- : VDSS= 300V(Min)
* Static Drain-Source On-Resistance : RDS(on) = 65mΩ(Max)
* Fast Switching
* 100% avalanche tested
* Minimum Lot-to-Lot variations for robust device performance and reliable operation

Applications

* Switch-Mode and Resonant-Mode Power Supplies
* DC-DC Converters
* AC and DC Motor Drives
* ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VDSS Drain-Source Voltage 300 V VGS Gate-Source Voltage-Continuous ±20 V ID Drain Current-Continuous 50 A IDM Drain
