IXTH02N250 High Voltage Power MOSFETs

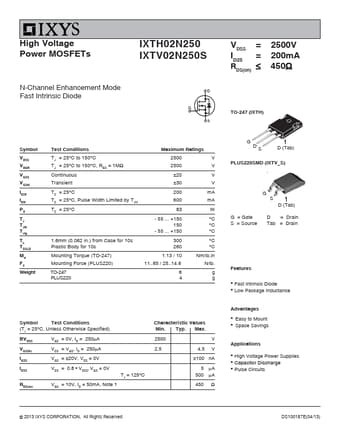

High Voltage Power MOSFETs IXTH02N250 IXTV02N250S N-Channel Enhancement Mode Fast Intrinsic Diode VDSS = ID25 = ≤RDS(on) 2500V 200mA 450Ω TO-247 (IXTH) Symbol VDSS VDGR VGSS VGSM ID25 IDM PD TJ TJM Tstg TL TSOLD Md FC Weight Test Conditions TJ = 25°C to 150°C TJ = 25°C to 150°C, RGS = 1MΩ Continuous Transient TC = 25°C TC = 25°C, Pulse Width Limited by TJM TC = 25°C 1.6mm (0.062 in.) from Case for 10s Plastic Body for 10s Mounting Torque (TO-247) Mounting Force (PLUS220) TO-247 PLUS220 M.

IXTH02N250 Features

* z Fast Intrinsic Diode z Low Package Inductance Advantages z Easy to Mount z Space Savings Applications z High Voltage Power Supplies z Capacitor Discharge z Pulse Circuits © 2013 IXYS CORPORATION, All Rights Reserved DS100187E(04/13) Symbol Test Conditions (TJ = 25°C, Unless Otherwise Specifie
