Part number:
IXTQ130N10T
Manufacturer:
INCHANGE
File Size:
252.84 KB
Description:
N-channelmosfet.

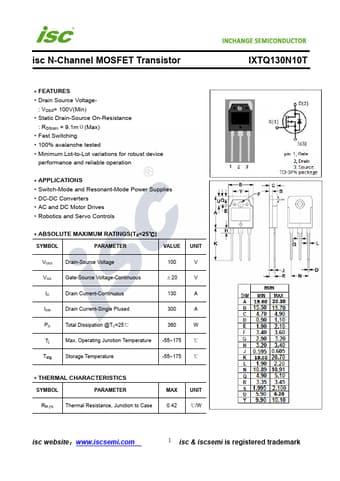

IXTQ130N10T Datasheet (252.84 KB)
* Drain Source Voltage- : VDSS= 100V(Min)
* Static Drain-Source On-Resistance : RDS(on) = 9.1mΩ(Max)
* Fast Switching
* 100% avalanche tested
* Minimum Lot-to-Lot variations for robust device performance and reliable operation
* APPLICATIONS
* Switch-Mode and Resonant-Mode Powe
IXTQ130N10T Datasheet (252.84 KB)
IXTQ130N10T
INCHANGE
252.84 KB
N-channelmosfet.
