STP65NF06 - N-Channel MOSFET

STP65NF06 Description

isc N-Channel MOSFET Transistor INCHANGE Semiconductor STP65NF06 *.

STP65NF06 Features

* With TO-220 packaging
* High speed switching
* Standard level gate drive
* Easy to use
* 100% avalanche tested
* Minimum Lot-to-Lot variations for robust device performance and reliable operation

STP65NF06 Applications

* Power supply
* Switching applications
* ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE VDSS Drain-Source Voltage 60 VGSS ID IDM Gate-Source Voltage Drain Current-Continuous@TC=25℃ TC=100℃ Drain Current-Single Pulsed ±20 60 42 240 PD Total Dissipation 110 Tj Operati

📥 Download Datasheet

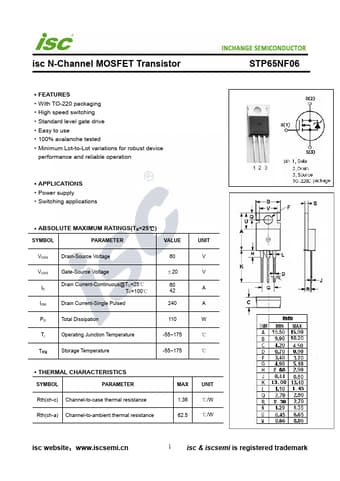

Preview of STP65NF06 PDF
datasheet Preview Page 2

Datasheet Details

Part number
STP65NF06
Manufacturer
INCHANGE
File Size
201.14 KB
Datasheet
STP65NF06-INCHANGE.pdf
Description
N-Channel MOSFET
