STP60NF06FP - N-Channel MOSFET

STP60NF06FP Description

Isc N-Channel MOSFET Transistor INCHANGE Semiconductor STP60NF06FP *.

STP60NF06FP Features

* Typical RDS(on)=0.08Ω
* With low gate drive requirements
* Easy to drive
* 100% avalanche tested
* Minimum Lot-to-Lot variations for robust device performance and reliable operation

STP60NF06FP Applications

* Solenold and relay dirvers
* DC-DC converters
* Automotive environment
* ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE VDSS Drain-Source Voltage 60 VGSS ID IDM Gate-Source Voltage Drain Current-Continuous@TC=25℃ TC=100℃ Drain Current-Single Pulsed ±20 11 7.5 44 PD

📥 Download Datasheet

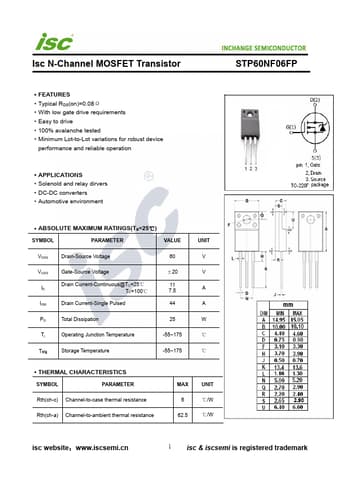

Preview of STP60NF06FP PDF
datasheet Preview Page 2

Datasheet Details

Part number
STP60NF06FP
Manufacturer
INCHANGE
File Size
196.84 KB
Datasheet
STP60NF06FP-INCHANGE.pdf
Description
N-Channel MOSFET
